LZW-32 B-10  Pole Mounted Switch Current Transformers

Overview: The LZW-32B-10 series CT is designed for10kV AC power distribution system. And it is mainly installed in the ZW32-10 pole-mounted switches for the protection and measurement of three-phase current….

Overview:

The LZW-32B-10 series CT is designed for10kV AC power distribution system. And it is mainly installed in the ZW32-10 pole-mounted switches for the protection and measurement of three-phase current. It is designed with superconducting magnetic materials, so that it can both meet the requirements of high-precision and high-capacity simultaneously. In addition, the product is covered by a layer of silicone rubber for insulation ,hence ,it has the advantages of high temperature resistance, low temperature resistance, corrosion resistance, UV-resistance, anti-aging, maintenance free, etc.

The B series CT has characterstics of large creep distance and high voltage resistance, so that it can work normally in environments with lower temperature or higher altitude. There are two models two winding design, can achieve the function of both measurement and protection

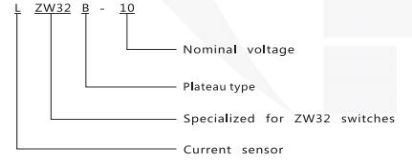

Type Designation:

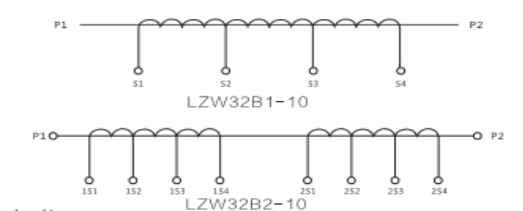

Electrical Diagrams:

Technical Data:

Download the specifications of LZW32B-10 series current transformer Transformers

LZW32 series current transformer  download.pdf
