LZW-32 CT For 32 Pole Mounted Switch

LSYW32-10 current transformer

LSYW32-10 three-phase integrated pole mounted switch current transformerSummaryLSYW32-10 s···

LSYW32-10 three-phase integrated pole mounted switch current transformer

Summary

LSYW32-10 series CT is designed for10kV AC power distribution system. And it is mainly installed in the ZW32-10 pole-mounted switches for the protection and measurement of three-phase current. It is designed with superconducting magnetic materials, so that it can both meet the requirements of high-precision and high-capacity simultaneously. In addition, the product is covered by a layer of silicone rubber for insulation,hence ,it has the advantages of high temperature resistance, low temperature resistance, corrosion resistance, UV-resistance, anti-aging, maintenance free, etc.

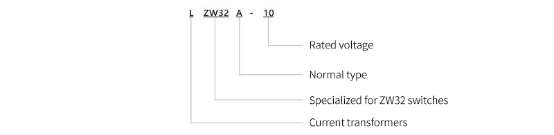

 Type designation

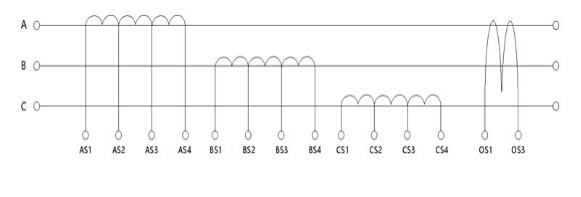

Wire Diagrams




Working condition



Ambient temperature

-25 40

Altitude temperature

≤2000 m

Daily temperature average

≤40

Pollution level





Technical Parameter



Rated primary insulation voltage

12/42/75 kV

Rated frequency

50 Hz

Type

Phase distance(L)

Acc. class and rated load(VA)

Phase

260/340

200/400/600/1

10P20

1.5/2.0/2.5 VA

200/400/600/5

10P20

5.0/7.5/10.0 VA

Zero sequence

260/280/
320/340

20/1

1

0.1 VA

3

0.5 VA

Performance standards

 GB 20840-1,GB20840-2

Note

Metal connection tube size can be customized, combined transformer can choose A/B/C+ zero sequence, or A/C+ zero sequence

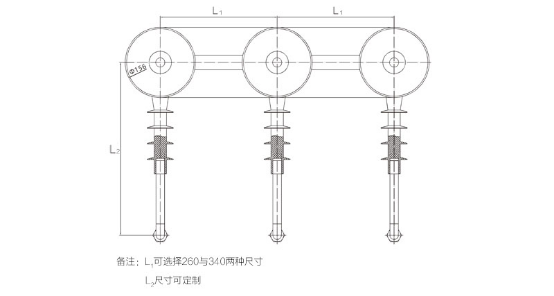

Drawings 1556519080(1).jpg

Note: L1 optional 260 and 340 two size

L2,size customization




Download the specifications of LSYW32-10 current transformer Transformers

LZW32 series current transformer  download.pdf
