LZW-32 CT For 32 Pole Mounted Switch

JZW-10 type voltage transformer

JZW-10 type voltage transformerType designationTechnical data:· The product performance is in accord···

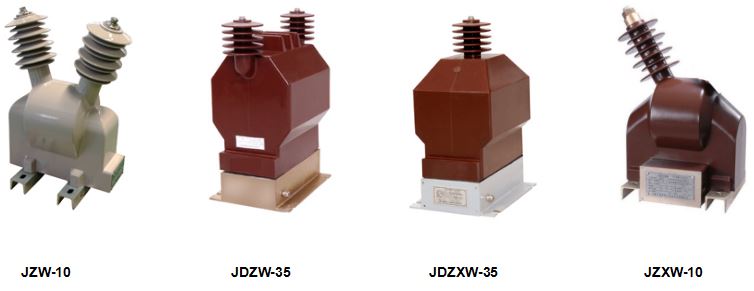

JZW-10 type voltage transformer

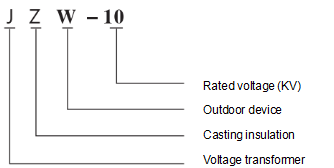

Type designation

Technical data:

· The product performance is in accordance with GB1207 and IEC60044-2 standards

· Rated insulation level 12/42/75 kV

· Rated frequency 50Hz or 60Hz

· Ambient temperature –25℃~+40℃

· Altitude: Up to 1000m above sea level

· Outdoor device


Rated voltage ratio (kV)

Accuracy-grade combination

Rated output (VA)

Thermal limit output (VA)

0.2

0.5

3

10/0.1
     10//0.1//0.22

0.2,0.5,3

  30

100

200

900

Note: If the user’s required data is different from the above-mentioned scope, it can be negotiated to solve the problem

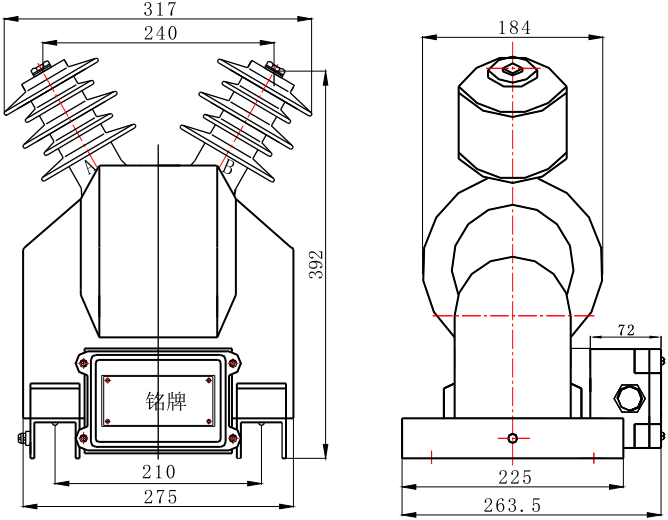

Overall dimensions:


Cautions:

When there’s current get through the primary winding of current transformer, the secondary winding shouldn’t be open circuit; otherwise there would be high voltage generated, which is harmful or have impact on personal security and product performance.

Repeated power frequency voltage-withstand test, should be taken at the 85% of stipulated test voltage value.



Hyliton Power Technology is one of the largest and experienced manufacturers and suppliers of high-tech products in China who can offer you advanced and high quality outdoor voltage transformers OEM at competitive price. Welcome to order our CE outdoor voltage transformers made in China.




Download the specifications of JZW-10 type voltage transformer Transformers

MV Outdoor VT Download.pdf
