LZZBJ9-12/150b/2S (AS12/150b/2S) current transformer

LZZBJ9-12/150b/2S (AS12/150b/2S) current transformerType designation:Technical data:· The product pe···

Send Inquiry

Product Details

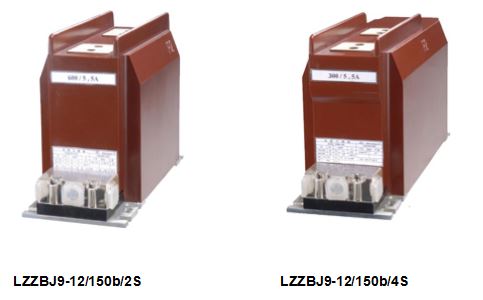

LZZBJ9-12/150b/2S (AS12/150b/2S) current transformer

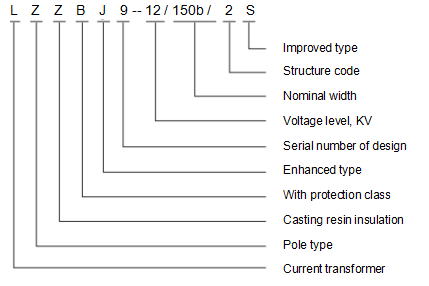

Type designation:

Technical data:

· The product performance is in accordance with GB1208 and IEC60044-1 standards

· Rated insulation level 12/42/75 kV

· Rated frequency 50Hz or 60Hz

· Rated secondary current 5A or 1A

· Ambient temperature –25℃～40℃

· Altitude: Up to 1000m above sea level

· Indoor device

Type	LZZB12-10/150b/2S(AS12/150b/2S) Two windings							LZZB12-10/150b/2S(AS12/150b/2S) Three windings
Specification	Accuracy- combination	Rated Secondary output (VA)					Short-time thermal current (KA/s)	Dynamic stable current (KA)	Accuracy- grade combination	Rated Secondary output (VA)			Short-time thermal current (KA)	Dynamic stable current (KA)
		0.2S	0.2	0.5S	0.5	5P/10P (1020)				0.2	0.5	10P10
20-200	0.2/0.5 0.2/10P10 0.5/10P10	10	10	15	15	20	100Iln	250Iln	0.2/0.5/10P10 0.5/0.5/10P10	10	10	10	100Iln	250Iln
300							31.5	80					31.5	80
400							45	112.5					45	112.5
500
600							63	130		15	15	15	63	130
800							80	200					80	200
1000
1200							80	200					80	200
1250

Note: If the user's required data is different from the above-mentioned scope, it can be negotiated to solve the problem

Overall dimensions:

Cautions:

When there's current get through the primary winding of current transformer, the secondary winding shouldn't be open circuit; otherwise there would be high voltage generated, which is harmful or have impact on personal security and product performance.

Repeated power frequency voltage-withstand test, should be taken at the 85% of stipulated test voltage value.

Hyliton Power Technology is one of the largest and experienced manufacturers and suppliers of high-tech products in China who can offer you advanced and high quality indoor current transformers OEM at competitive price. Welcome to order our CE indoor current transformers made in China.


Download the specifications of LZZBJ9-12/150b/2S (AS12/150b/2S) current transformer Transformers

MV Indoor CT Download.pdf
