LZCT-10/24 Bushing Type Current Transformer

General description:

LZCT Bushing Type Current Transformer is suitable for current measurement, metering and microcomputer protection of distribution equipments in 35kV and 10kV AC power system. It iswidely used in compact fully insulated ring main unit and Reactive compensation device because of its small volume, light weight, andconvenient installment.

The circular ring core and secondary windings are vacuum pouredby high quality epoxide resin in the fire retardant plastic casing,which has the characteristic of moisture proof, stable performanceand dispensing with maintenance. It can be fixed on the bushingsof the ring main unit and Reactive compensation device quickly anduniformly.

The current transformers can be divided several kinds accordingto the various current ratio, accuracy and rated loads. The specificparameters are showed in the corresponding parameter tables ofevery type.

Type designation:

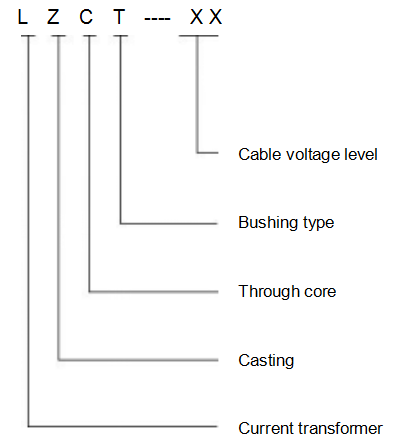

Type code:

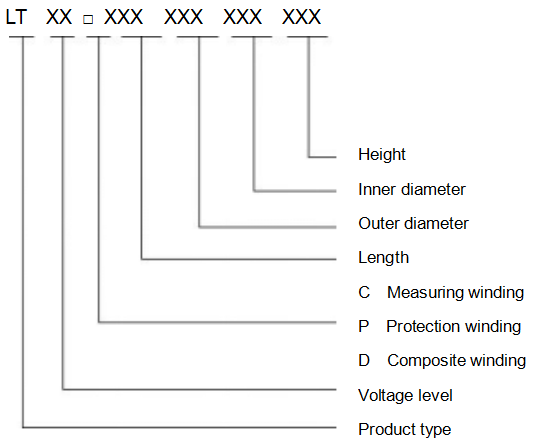

Product code:

Technical data:

Rated frequency：                 50Hz or 60Hz

Rated secondary current：          5A or 1A

Rated short-time thermal current：   40kA，1s

Rated continuous thermal current：  120%In

Power-frequency withstand voltage:  3KV , 1min

Instrument security factors：        FS≤10

Application conditions:

Ambient temperature：            -25 ℃-+40℃

Average day temperature：        ≤40℃

Altitude：                        ≤3000m

Pollution level：                  III

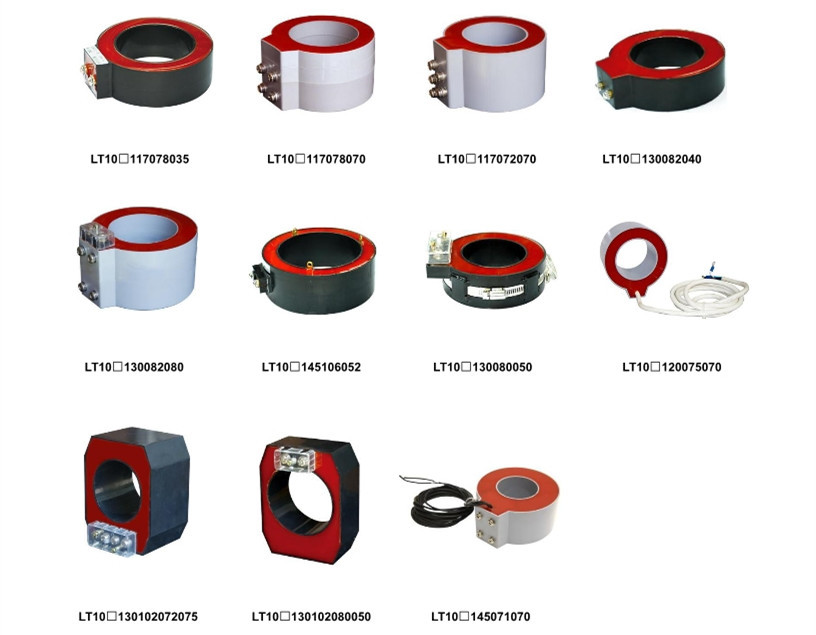

Product overview:

All kinds of current transformers of different specifications and parameters can be made according to the client’s demands.

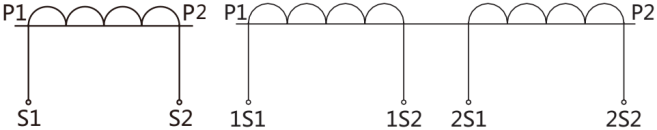

Wiring diagrams:

                                                       Single winding                                                                           Double windings

Download the specifications of LZCT series bushing type current transformer Transformers

Bushing CT Download.pdf
