LDZK series split core current transformer

LDZK-10/24/35 Split Core Current TransformerGeneral description:The LDZK Split Core Current Transfor···


LDZK-10/24/35 Split Core Current Transformer

General description:

The LDZK Split Core Current Transformer is suitable for current measurement and microprocessor protection of distribution equipment of below 10KV or 35KV cable line in AC power system. It is widely used not only incompact fully insulated Ring Main Unit such as ABB-SafeRing/SafePlus, Schneider RM6/SM6, Eaton SVS, GA/GE in Germany , FB in France and SS in Korea, but also in combined substation and cable take-off boxes, thanks to its features of small volume, light weight, open feasibility and convenient installment. It is very convenient that this CT can be directly installed at connected output and input cables.

Imported high quality silicon steel sheets with high magnetic permeability are used as transmit magnetism material in the measuring winging of LDZK, therefore its core can be split and the magnetic circuit loss is low. The semicircular core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which makes it has the characteristics of moisture proof, stable performance and maintenance free.

For installation, make the two semicircular half of the CT clip on the split phase cable, use hoop to encircle it tightly, which will make it integrated with the cable uniformly. It is applicable to all the 35mm²-400mm²10KV and 35KVcables.

This series of CTs are divided into the following types according to different current ratios, accuracy and rated loads. The specific parameters are showed in the corresponding parameter tables of each type.

Type designation:

Type code:

Product code:

Technical data:

Rated frequency:                 50Hz or 60Hz

Rated secondary current:          5A or 1A

Rated short-time thermal current:   40kA,1s

Rated continuous thermal current:  120%In

Power-frequency withstand voltage:  3KV , 1min

Instrument security factors:        FS≤10

Application conditions:

Ambient temperature:            -25 ℃-+40℃

Average day temperature:        ≤40℃

Altitude:                        ≤3000m

Pollution level:                  III

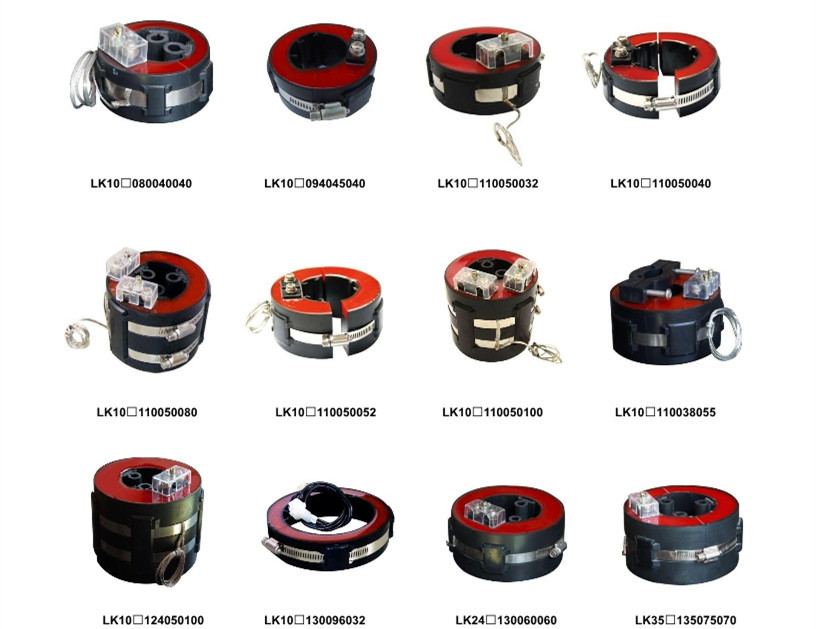

Product overview:

Type code

Product code

Dimensions

(mm)

Primary current(A)

Weight(kg)

Applicable cable

LDZK-10

LK10□080040040

φ80×φ40×40

100-600

0.6

240

LK10□094045040

φ94×φ45×40

100-600

0.95

240

LK10□110050032

φ110×φ50×32

300-600

0.7

500

LK10□110050040

φ100×φ50×40

300-600

0.9

500

LK10□110050080

φ100×φ50×80

200-600

1.8

500

LK10□110050052

φ110×φ50×52

40-600

1.2

500

LK10□110050100

φ110×φ50×100

30-600

2.5

500

LK10□100035040

φ100×φ35×40

100-800

1.5

120

LK10□110038055

φ110×φ38×55

20-100

2.3

150

LK10□124050100

φ124×φ50×100

20-600

2.8

500

LK10□130096032

φ130×φ96×32

50-600

0.7

400

LDZK-24

LK24□130060060

φ130×φ60×60

50-600

2.45

400

LDZK-35

LK35□135075070

φ135×φ75×70

50-600

2.5

400

All kinds of current transformers of different specifications and parameters can be made according to the client’s demands.

Wiring diagrams:

Single winding                             Double windings




Download the specifications of LDZK series split core current transformer Transformers

Split Core CT Download.pdf
