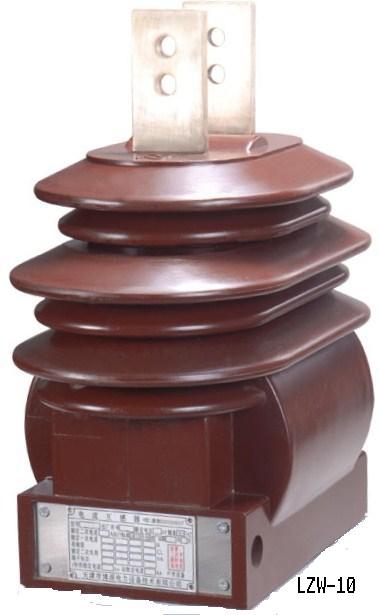

LZW一10G type current transformer

LZW一10G type current transformerType designationTechnical data:● The product performance is in···

Send Inquiry

Product Details

LZW一10G type current transformer

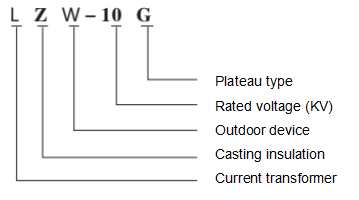

Type designation

Technical data:

● The product performance is in accordance with GB1208 and IEC60044-1 standards

● Rated insulation level 40.5/95/185 kV

● Rated frequency 50Hz or 60Hz

● Rated secondary current 5A or 1A

● Ambient temperature –25℃～+40℃

● Altitude: Up to 1000m above sea level

● Outdoor device

Rated voltage (KV)

Rated primary

current

(A)

Accuracy grade

Rated output

Rated short-time thermal current （lth）

Rated dynamic stable current (ldyn)

Testing winding

（MW）

Protection winding

(PW)

20,30,40,50,60,75,

100,150,200,250,

300,400,500,600,800

0.1,0.2,0.5,

1.0,0.2S,0.5S

5P10,5P15,

10P10,10P15

10,15,20

7.5,20,25,

31.5/2S,

31.5/3S

2.5lth

Note: If the user’s required data is different from the above-mentioned scope, it can be negotiated to solve the problem

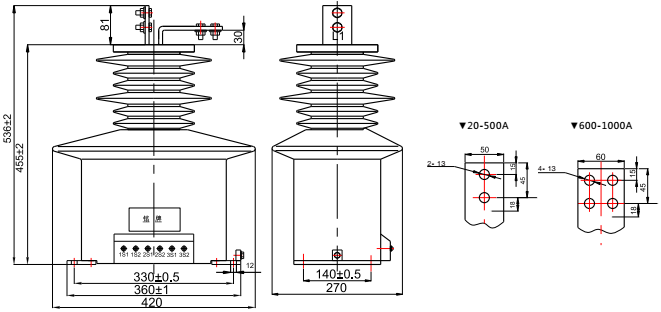

Overall dimensions:

Cautions:

When there’s current get through the primary winding of current transformer, the secondary winding shouldn’t be open circuit; otherwise there would be high voltage generated, which is harmful or have impact on personal security and product performance.

Repeated power frequency voltage-withstand test, should be taken at the 85% of stipulated test voltage value.

Hyliton Power Technology is one of the largest and experienced manufacturers and suppliers of high-tech products in China who can offer you advanced and high quality outdoor current transformers OEM at competitive price. Welcome to order our CE outdoor current transformers made in China.


Download the specifications of LZW一10G type current transformer Transformers
